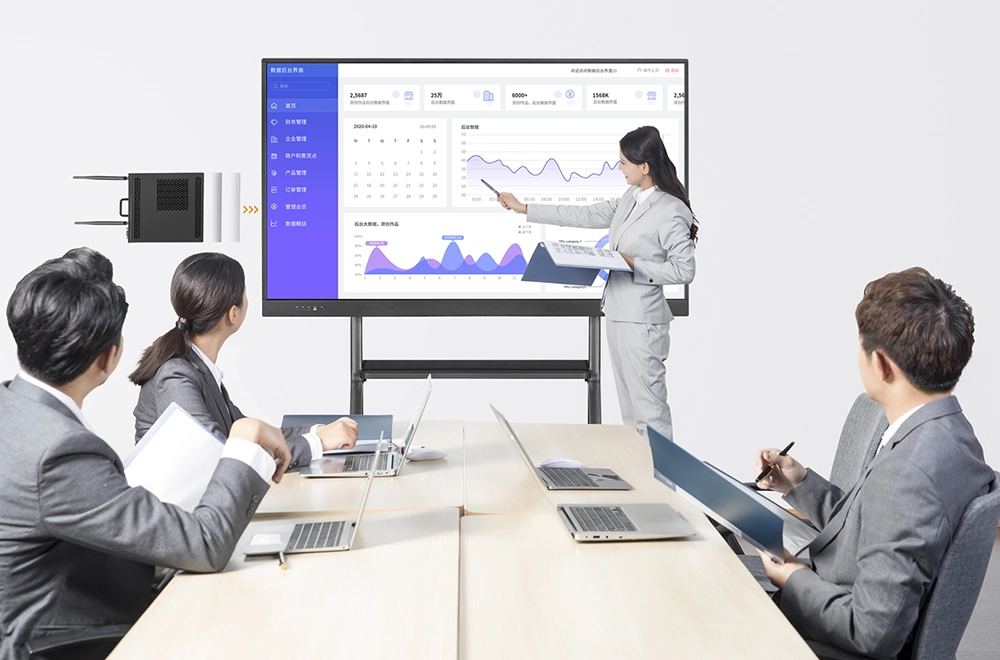

Designed for Professional Windows Collaboration

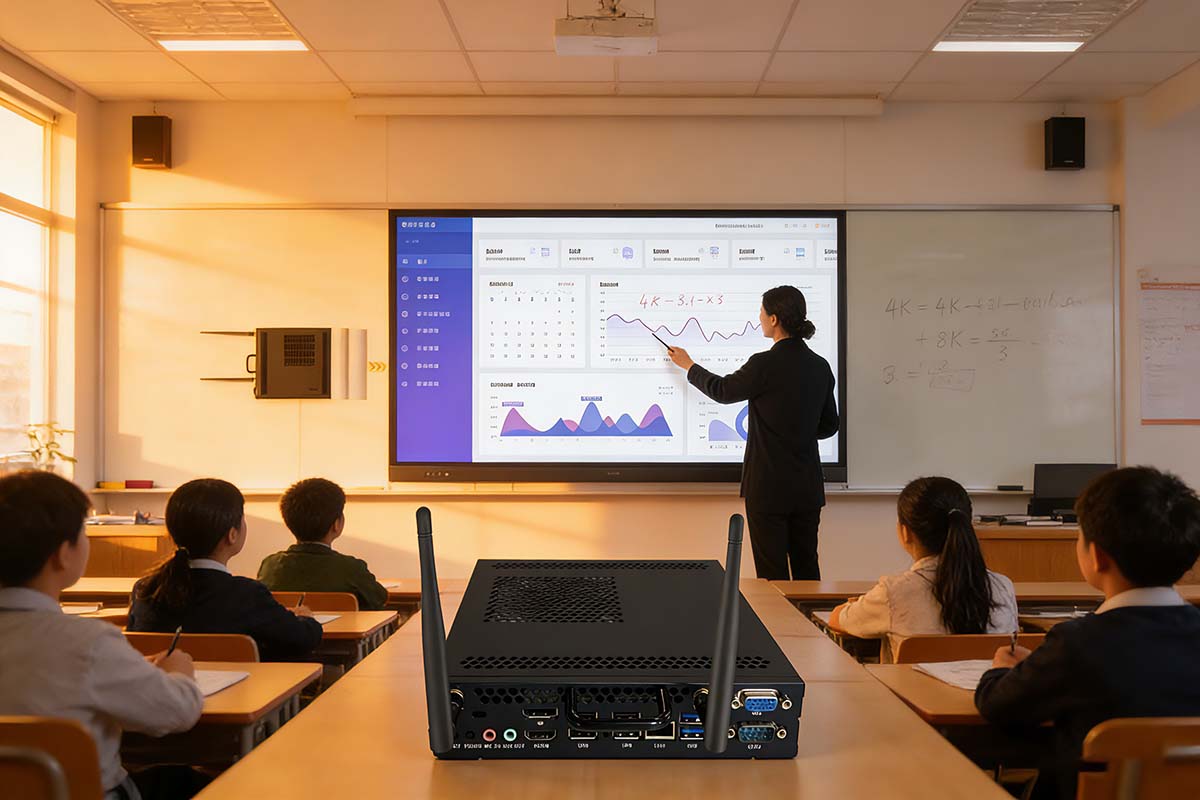

From education smart boards to enterprise boardrooms — Riotouch Intel OPS PC modules deliver the performance, security, and compatibility that institutions and OEM partners demand.
Intel Core HX-Series — Desktop-Class Power in an OPS Module
Unlike low-power U-series CPUs found in generic OPS modules, Riotouch deploys full Intel Core HX mobile processors with up to 16 cores and 24 threads for demanding multitasking, 4K video conferencing, and AI-powered collaboration.
- 14th Gen i7-14650HX — 16 cores, 24 threads, up to 5.2GHz boost
- 13th Gen i7-13650HX — 14 cores, 20 threads, up to 4.9GHz boost
- DDR5 memory — dual SO-DIMM slots, up to 64GB for heavy loads

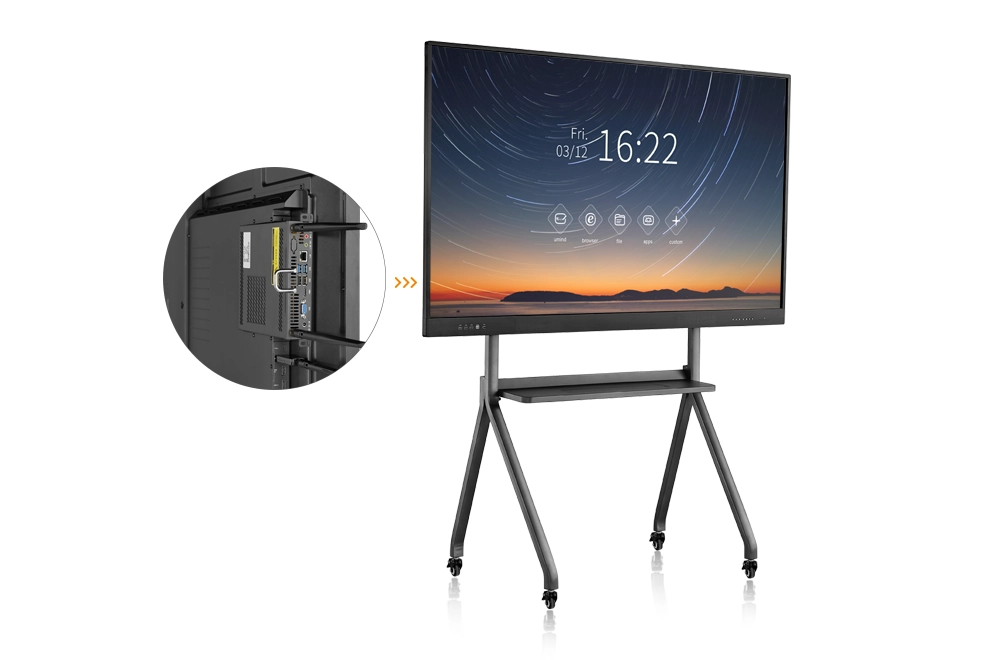

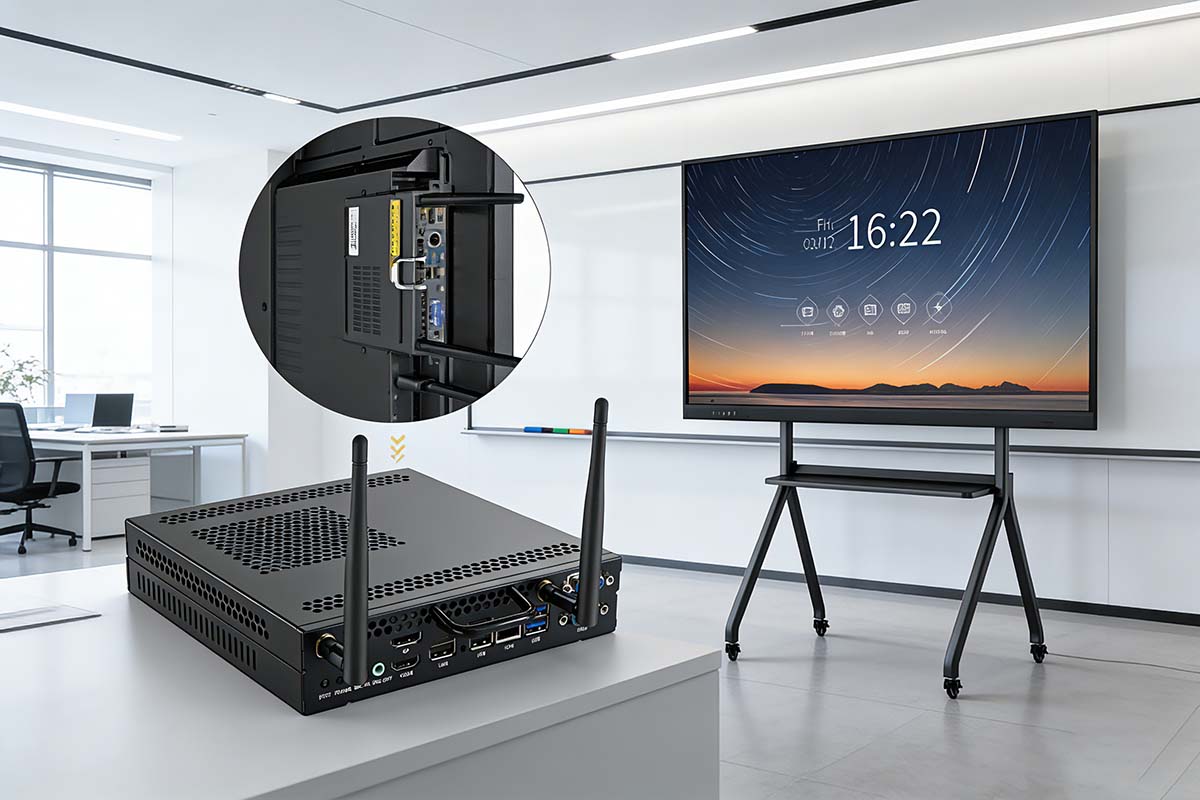

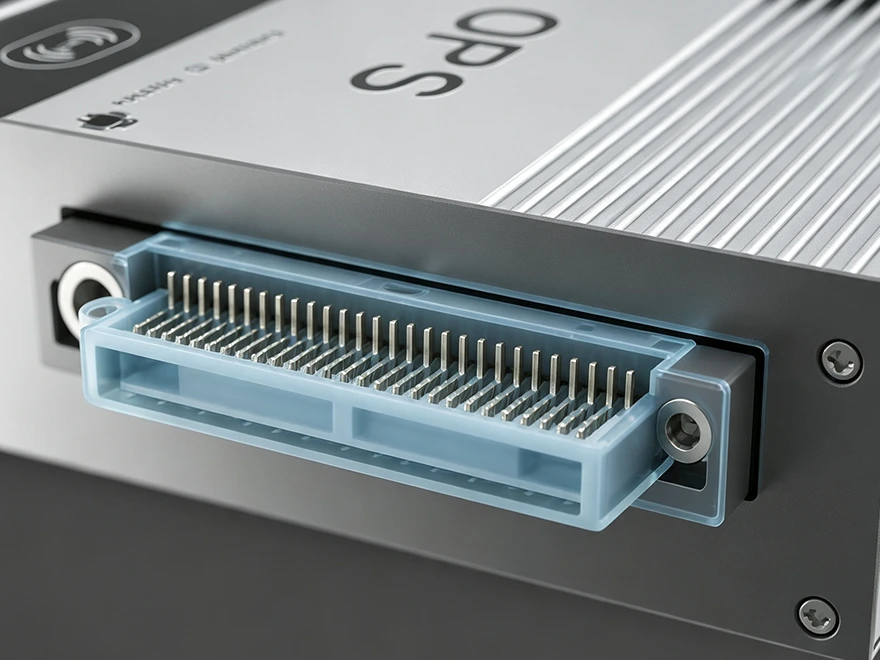

80-PIN JAE Plug-and-Play — Slot-In, Cable-Free Installation
Slide the OPS PC module into any standard OPS slot — zero cables, zero configuration. The 80-pin JAE connector routes HDMI video, DP, USB, audio, and DC power through a single plug-and-play interface. Tool-free, slot-in installation in under one minute.
- Single 80-pin JAE connector — HDMI + DP + USB + Audio + Power in one
- Standard OPS slot compatible — fits any Intel OPS-slot interactive flat panel or smart board
- Blind-mate plug-and-play — no screws, no cables, no alignment guesswork
- Tool-free replacement — swap modules in under 60 seconds
Windows 11 Pro + TPM 2.0 — Enterprise-Grade IT Control
Full Windows 11 Pro ecosystem with TPM 2.0 hardware security. IT teams can join Active Directory, enforce Group Policy, deploy BitLocker encryption, and manage OPS modules remotely — capabilities Android-based systems cannot match.
- TPM 2.0 hardware security module — BitLocker, Secure Boot
- Active Directory & Group Policy — enterprise fleet management
- Windows 11 Pro / IoT — full Windows driver support
- Microsoft Teams, Zoom, Office — full desktop versions, not limited Android apps

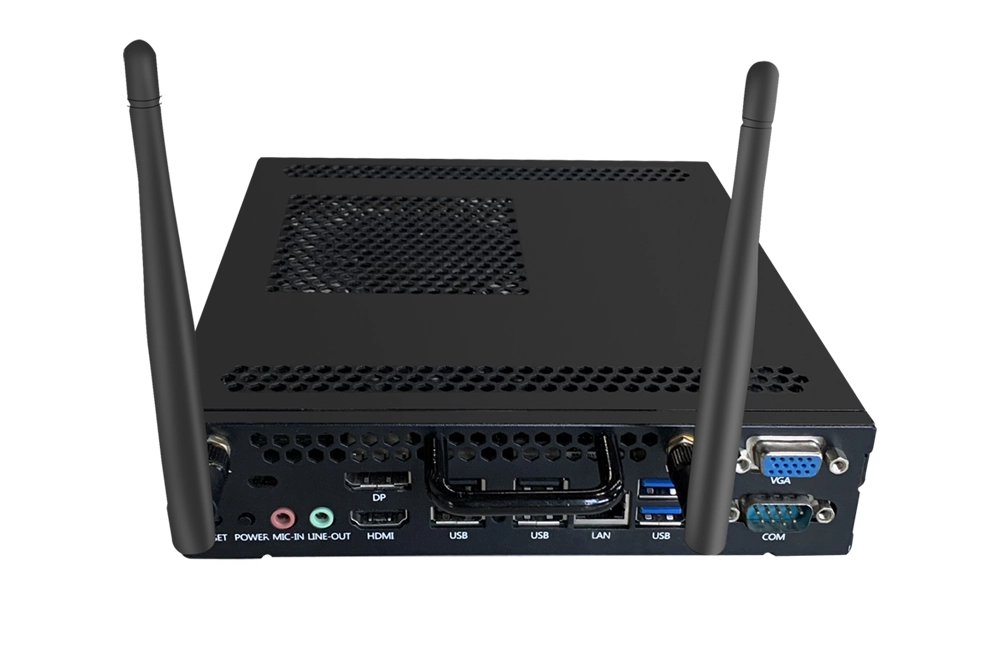

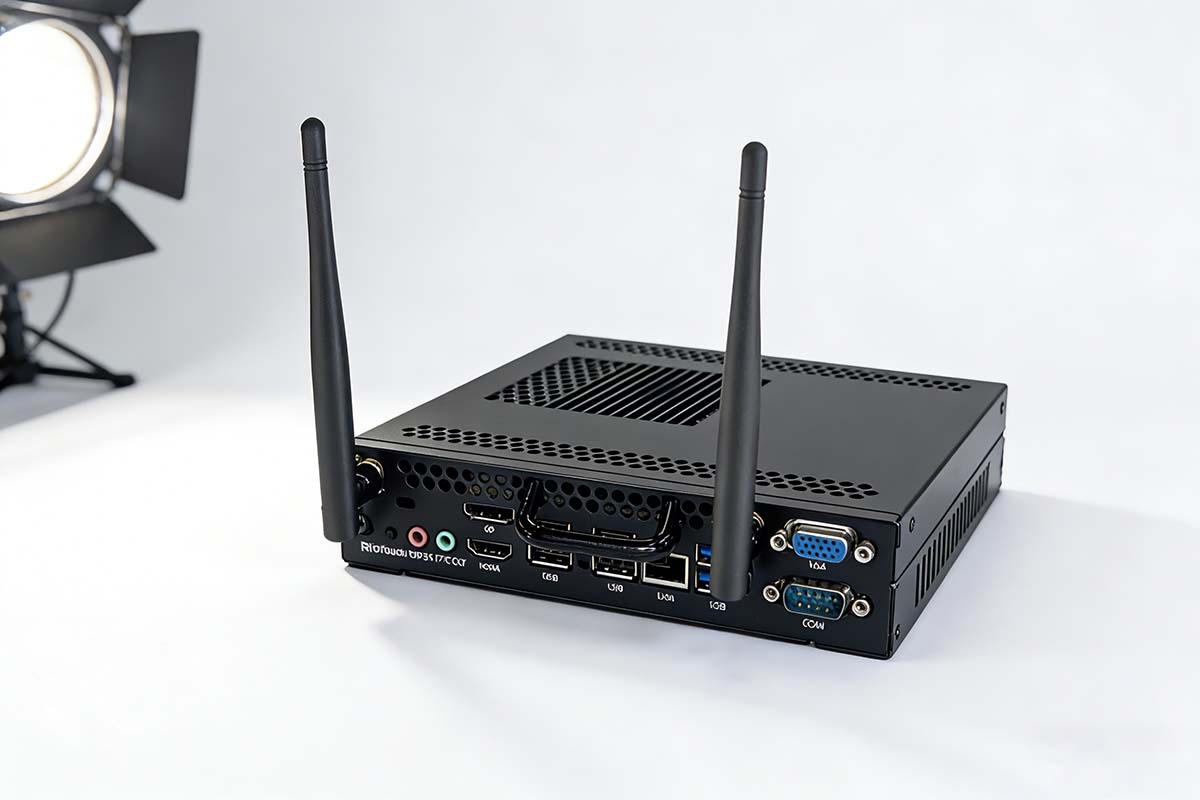

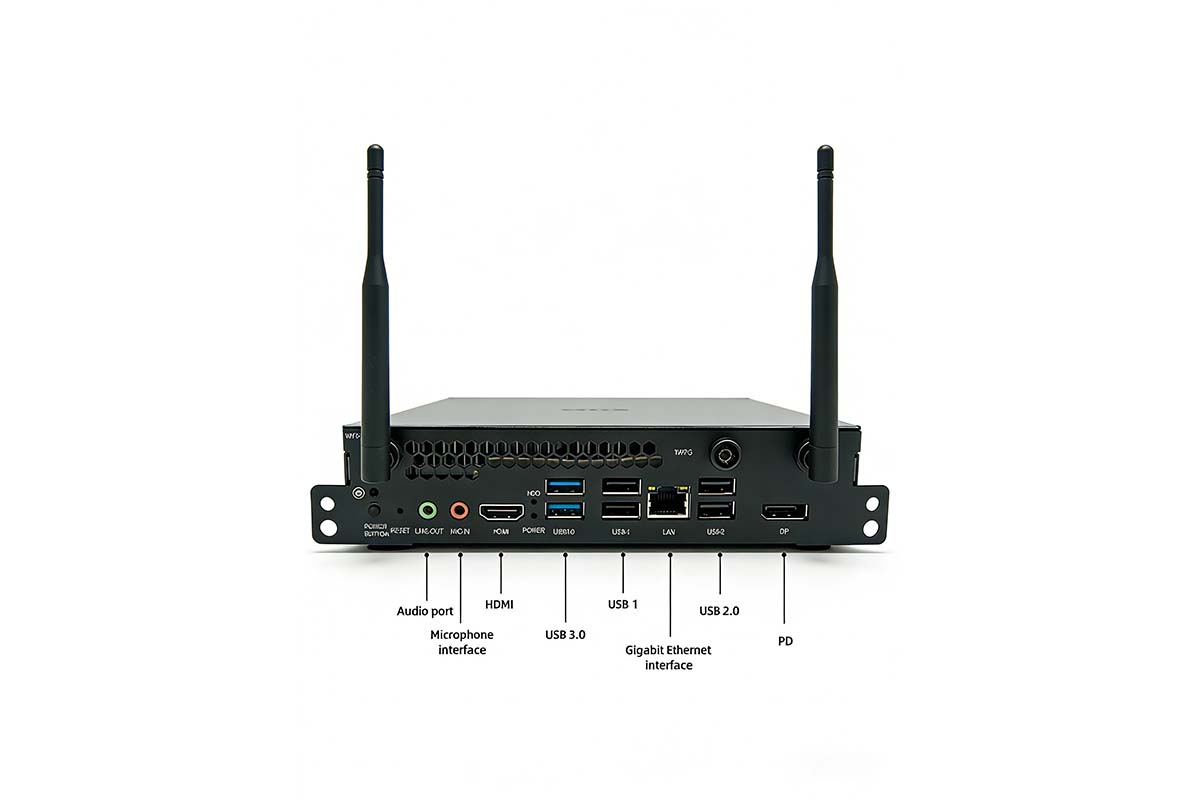

OEM OPS Manufacturer — Full Customization & Rich I/O
As a factory-direct OEM OPS manufacturer, Riotouch offers complete hardware and branding customization — from CPU configuration and chassis engraving to pre-installed Windows 11 Pro images. 6× USB 3.0, Type-C, Gigabit Ethernet, and WiFi 6 ensure maximum expandability for any deployment.
- 6× USB 3.0 + 1× Type-C — extensive peripheral connectivity
- Dual M.2 2280 — NVMe & SATA dual protocol, plus 2.5" SATA bay
- OEM/ODM manufacturing — hardware, branding, BIOS, Windows image, custom packaging
- Flexible MOQ — SKD/CKD options for regional assembly and distribution
Industrial-Grade Thermal Design — 0~45°C Wide Temperature

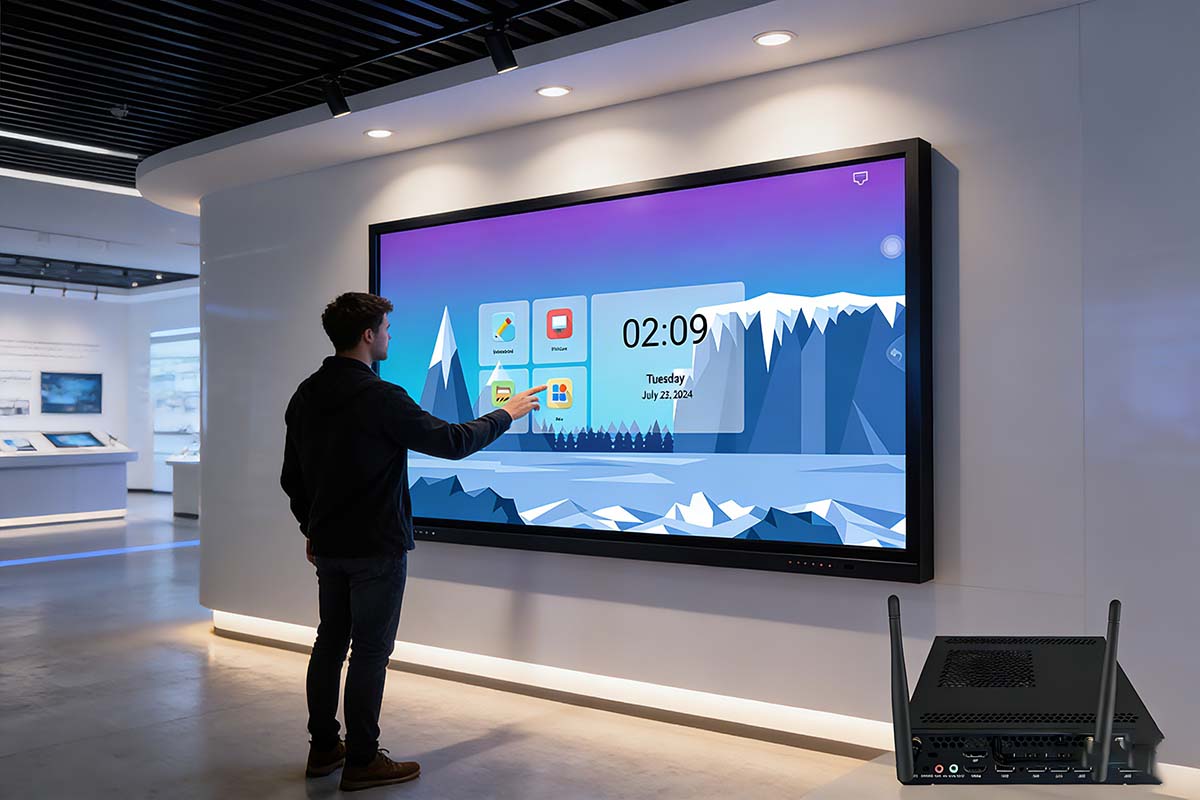

Engineered for 7×24 continuous operation in demanding environments. Automatic speed-adjusting fan with aluminum alloy chassis ensures stable thermal performance from cold server rooms to hot exhibition halls.
- 0~45°C operating range — reliable in extreme environments
- Auto-adjusting fan — intelligent thermal management with low noise
- Aluminum alloy chassis — superior heat dissipation vs steel/plastic
- 5%~95% humidity tolerance — non-condensing for humid climates
Triple-Storage Architecture & WiFi 6 — Maximum Expandability
Dual M.2 2280 slots supporting both NVMe and SATA protocols, plus an additional 2.5" SATA bay — up to three drives for OS, applications, and data separation. Optional WiFi 6/6E module for wireless deployment scenarios.
- 2× M.2 2280 — NVMe PCIe + SATA dual protocol, up to 2TB each
- 1× 2.5" SATA bay — HDD or SSD for bulk storage
- WiFi 6 / 6E optional — M.2 2230 slot for wireless modules
- Gigabit Ethernet RJ45 — plus Bluetooth 5.2/5.3 onboard
