All-in-One Android Advertising Display — AD43 & AD55 Series
Riotouch AD series wall mounted digital signage integrates display, Android OS, touchscreen, and stereo speakers into one slim device. Available in 43-inch and 55-inch sizes with rotatable portrait/landscape orientation, IR multi-touch, and a 50,000-hour commercial-grade lifespan. Built for retail, education, and corporate environments.
Two sizes, one all-in-one design. The AD43 and AD55 wall mounted digital signage displays deliver commercial-grade advertising and information display for retail, education, and corporate environments.
▶ Watch the AD Series wall mounted digital signage in action
From the retail storefront to the classroom hallway — the AD series wall mounted digital signage delivers vivid content, reliable performance, and flexible installation for various settings.

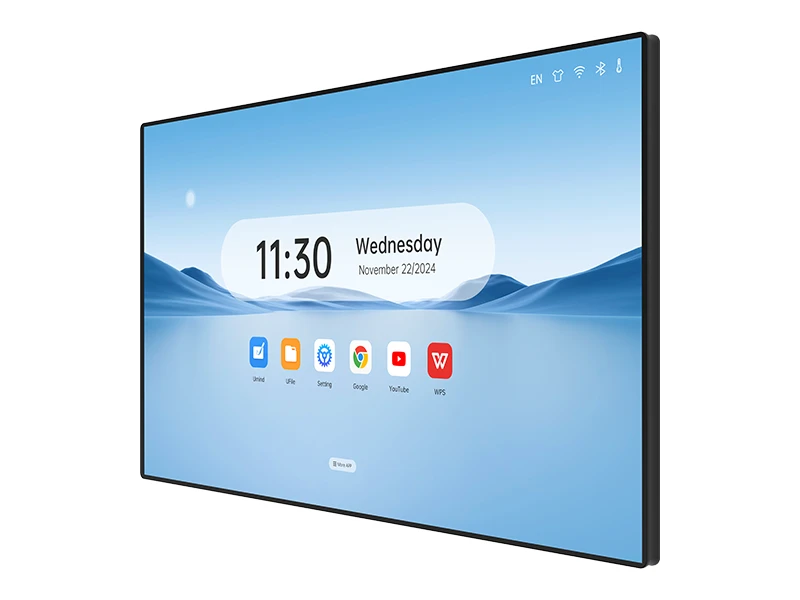

Display, Android motherboard, WiFi/Bluetooth module, and dual stereo speakers all integrated into one slim chassis. No external PC, no messy cables — mount it on the wall, plug in power, and your digital signage is live.

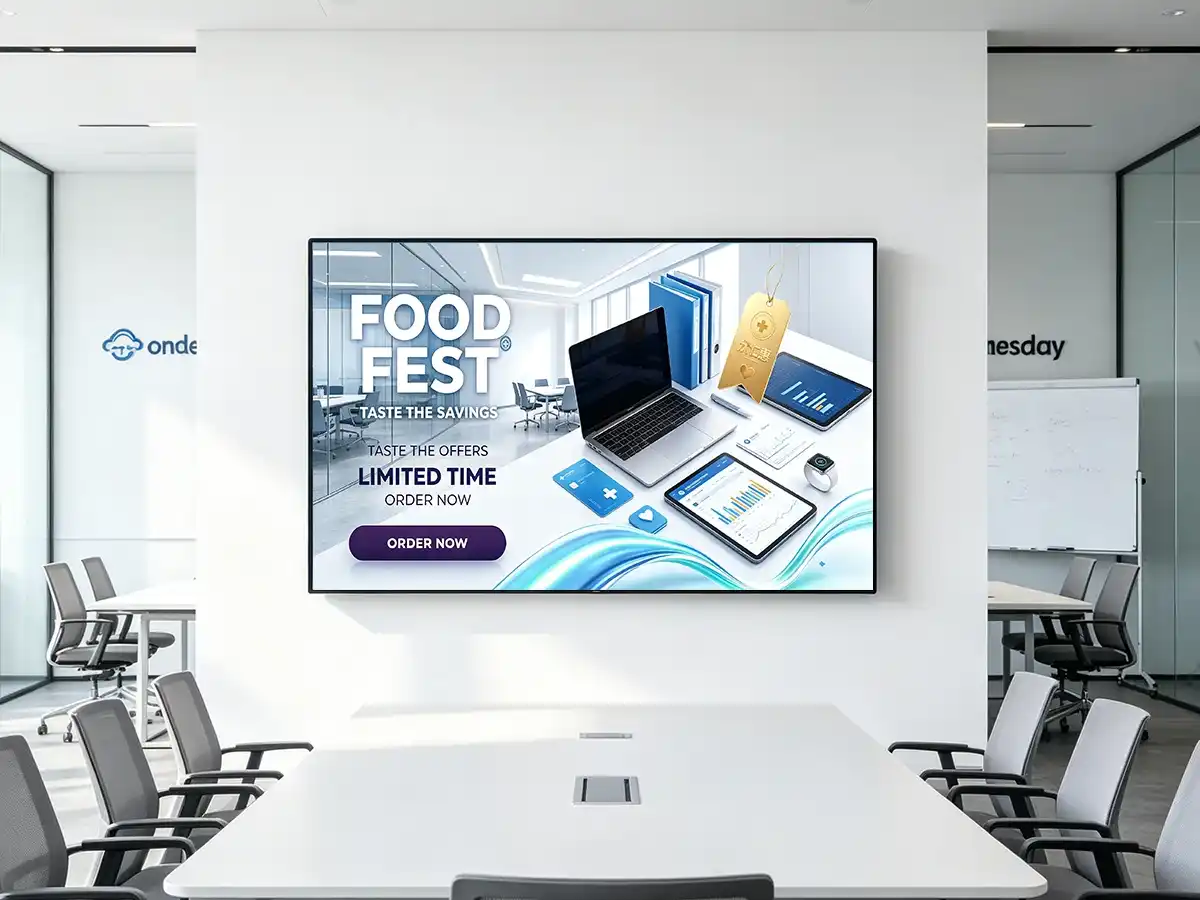

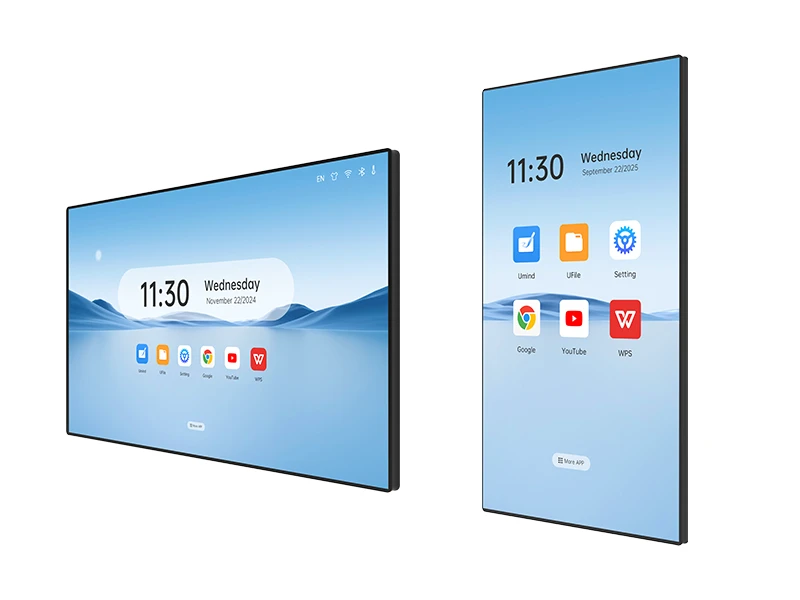

Physical rotation support with system-level orientation switching. Use the same device as a portrait menu board in the cafe, then rotate to landscape for the welcome screen in the lobby. One investment, double the utility.

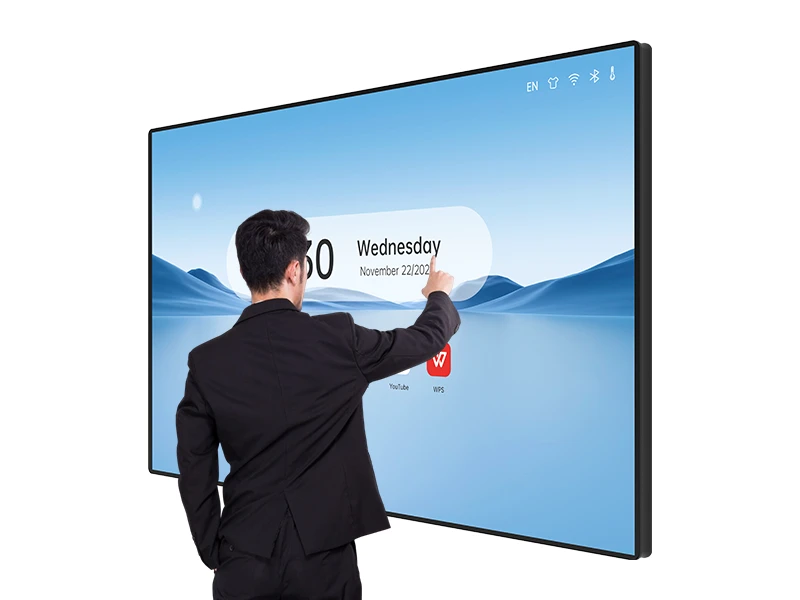

Turn passive advertising into interactive experiences. Customers can browse menus, explore product catalogs, or navigate wayfinding maps directly on the screen. Built-in stereo speakers ensure clear audio for video content.
Commercial-grade DLED backlight rated for 50,000 hours of continuous operation. Mohs-7 hardness anti-glare glass resists scratches in high-traffic areas. Zero-bonding technology eliminates air gaps for sharper image clarity.

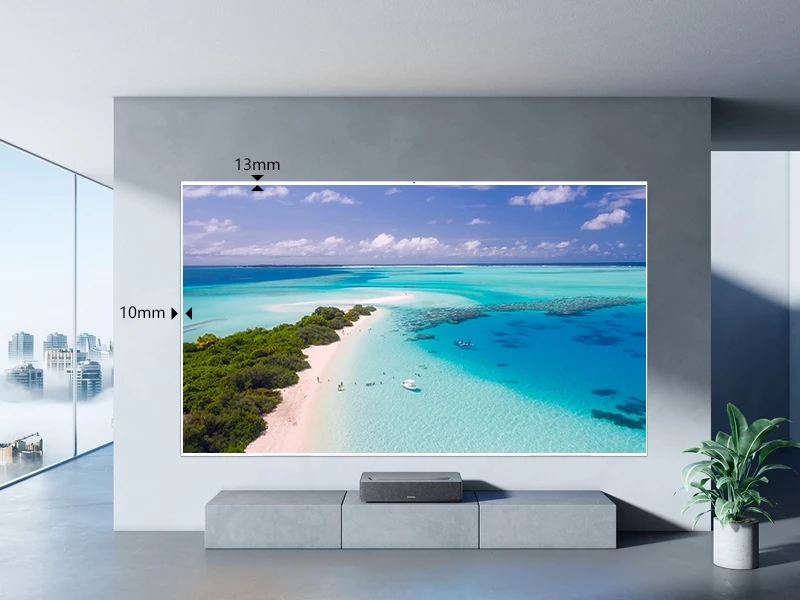

Ultra-narrow bezel design maximizes the display-to-body ratio, creating a sleek, modern appearance that blends into any interior. The 16:9 golden ratio aspect ensures content looks natural whether displaying videos, images, or text.

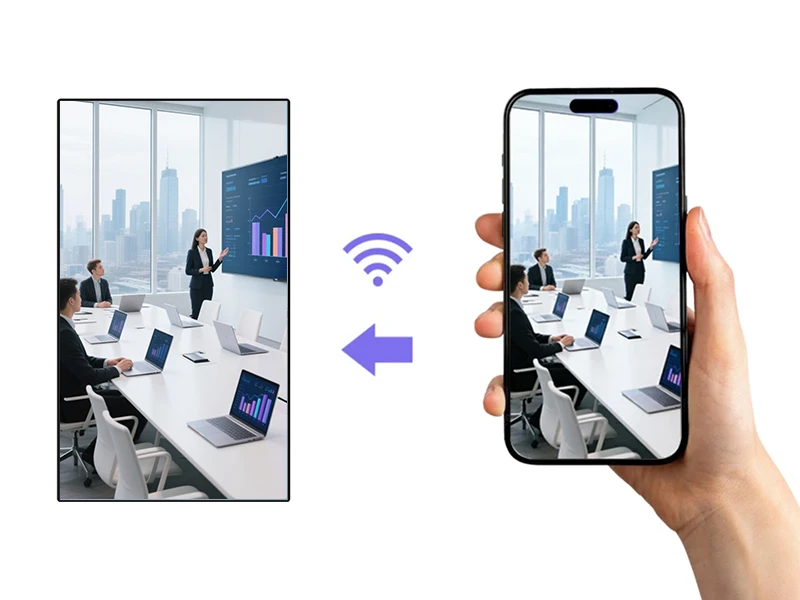

Built-in WiFi and Bluetooth enable wireless content transfer from mobile devices. Over-the-Air (OTA) update support ensures the Android system stays current without on-site technician visits — reducing long-term maintenance costs for multi-location deployments.

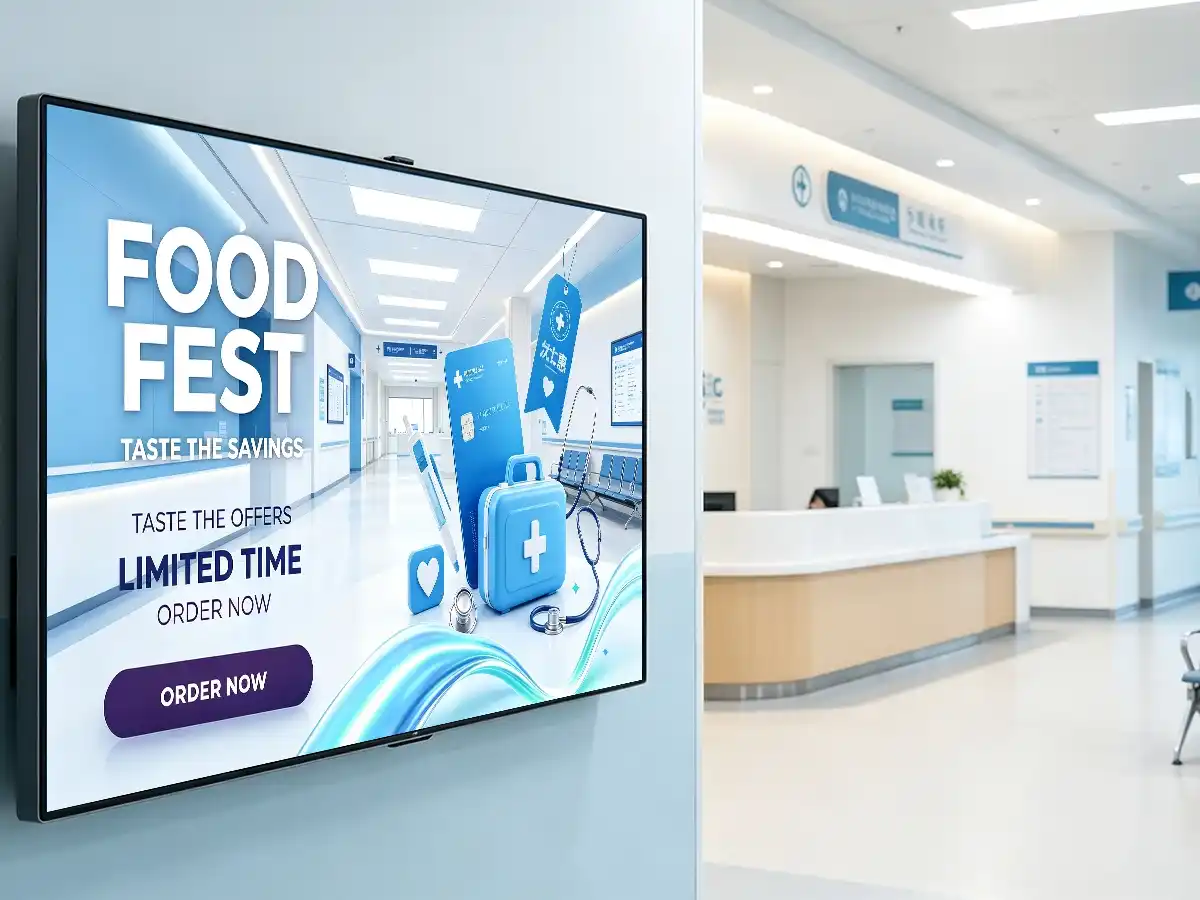

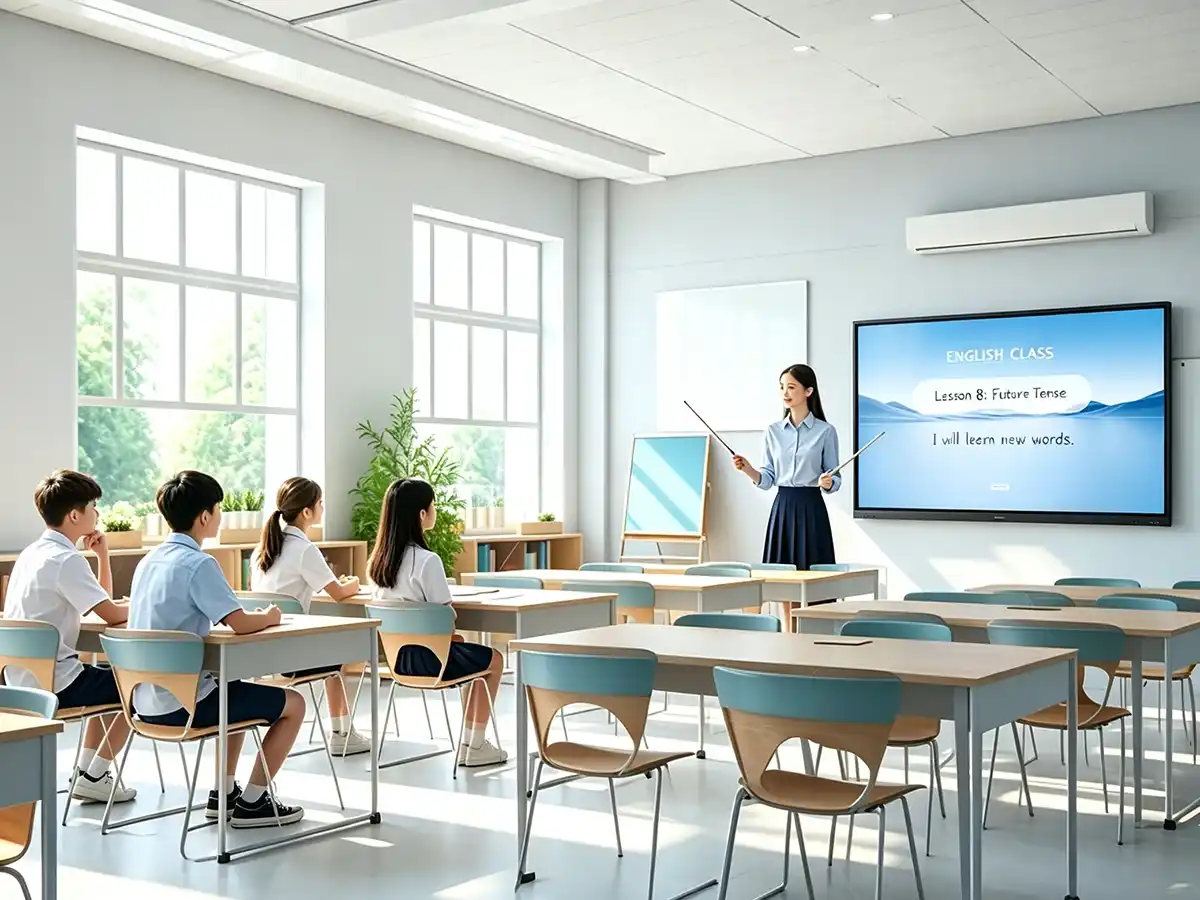

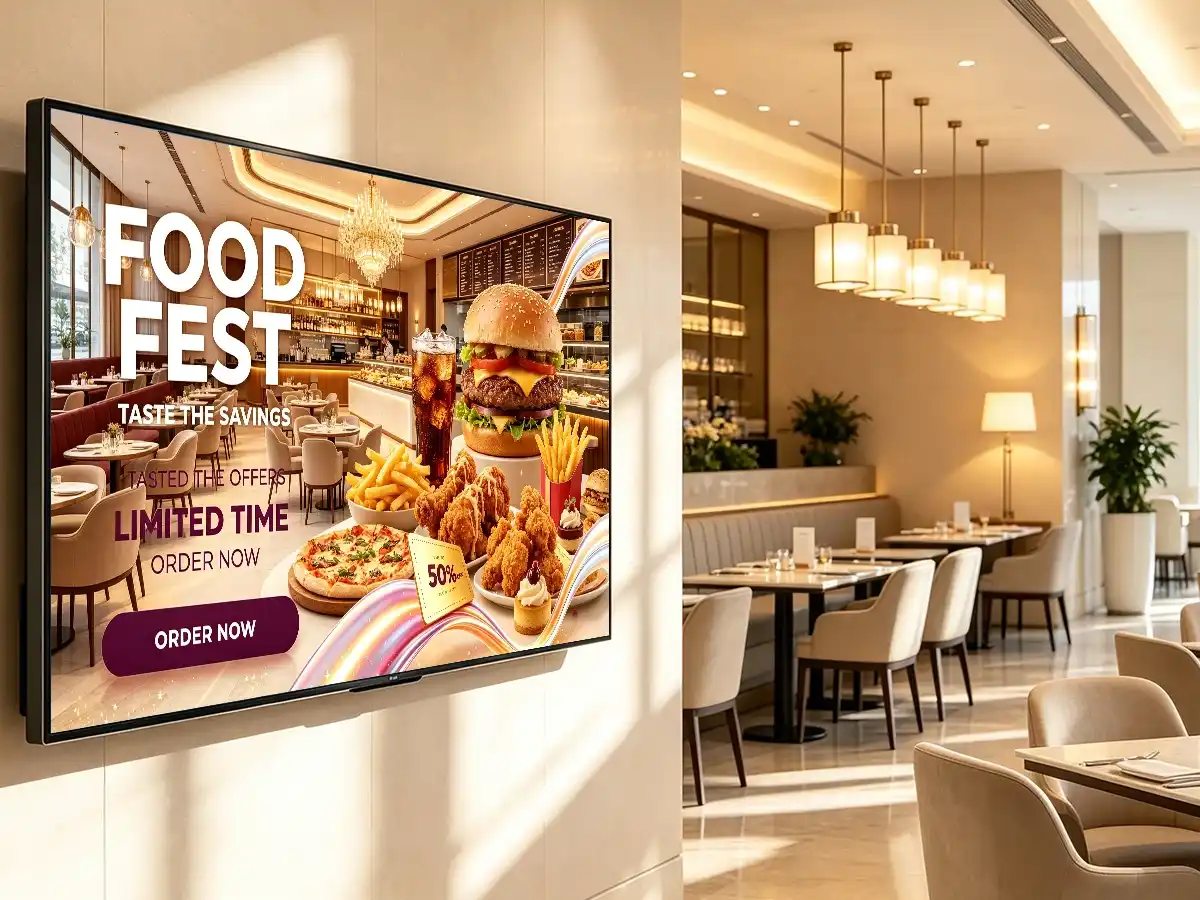

From restaurant menus to school notice boards — the AD series digital signage adapts to your industry's unique needs.
Complete technical overview of the AD43 and AD55 wall mounted digital signage models.
| Model | AD43 | AD55 |
|---|---|---|
| Display specification | ||
| Diagonal display size | 43(inch) | 55(inch) |
| Panel type | DLED | ✓ |
| Active area (mm) | 941.184(H) * 529.416(V) | 1209.6 (W) * 680.4(V) |
| Resolution | 1920*1080 | ✓ |
| Hardness Glass | Mohs-7 level | ✓ |
| Glass Panel | Anti-Glare glass with zero bonding | ✓ |
| Aspect Ratio | 16:9 | ✓ |
| Contrast Ratio | 1200:1 (type) | ✓ |
| Brightness | 200cd/m² | ✓ |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | ✓ |
| Lifespan | 50,000 hours | ✓ |
| General Information | ||
| Power Supply | ~ 100-240 V (50/60Hz) | ✓ |
| Switch On / Off | Yes | ✓ |
| Standby Energy Consumption | ≤ 0.7 Watt | ✓ |
| Power Consumption | Maximum< 80W Eco<25W |
Maximum< 100W Eco<25W |
| Screen Dimensions (WxDxH) | 984 * 29.3 * 576mm | 1252 * 59.3 * 724mm |
| Dimensions Package (WxDxH) | 1112 * 174 * 680mm | 1382 * 174 * 826 mm |
| Environmental conditions | ||
| Operating Temperature | 0°C - 38°C/32 - 100°F | ✓ |
| Storage Temperature | -20°C - 60°C/-4 - 140°F | ✓ |
| Storage Humidity | 10% - 90% | ✓ |
| Usage Humidity | 10% - 90% | ✓ |
Suitable for: Retail Stores · Restaurants · Classrooms · Corporate Lobbies · Exhibition Halls
Suitable for: Basic display needs · Single-purpose use
Teachers and school administrators in 80+ countries rely on Riotouch digital signage for classroom communication and campus information display.

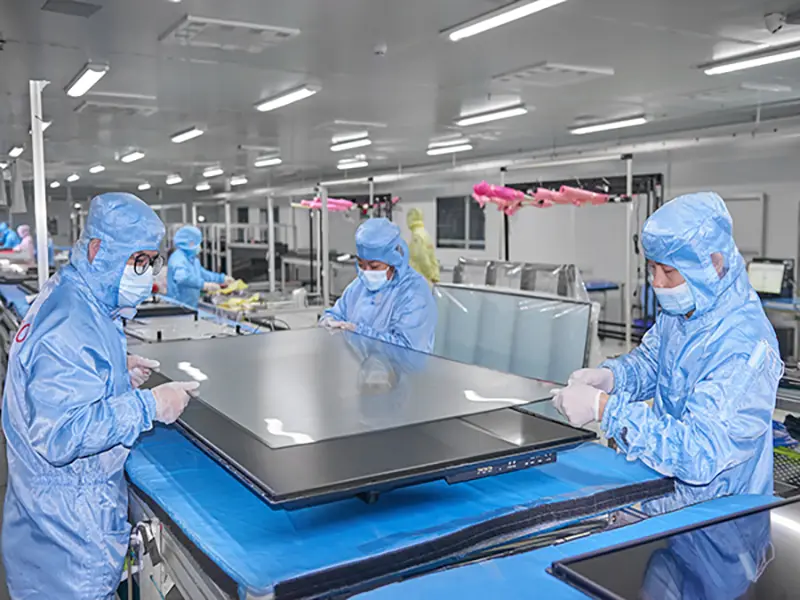

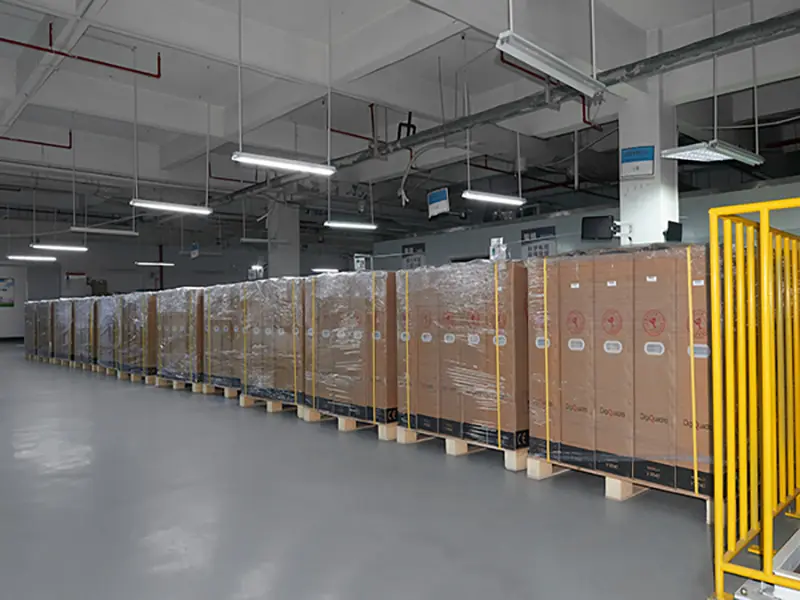

Riotouch operates a 20,000m² manufacturing facility in Dongguan, China — dedicated to digital signage assembly, touch panel integration, system testing, and final quality assurance for the AD series wall mounted displays.

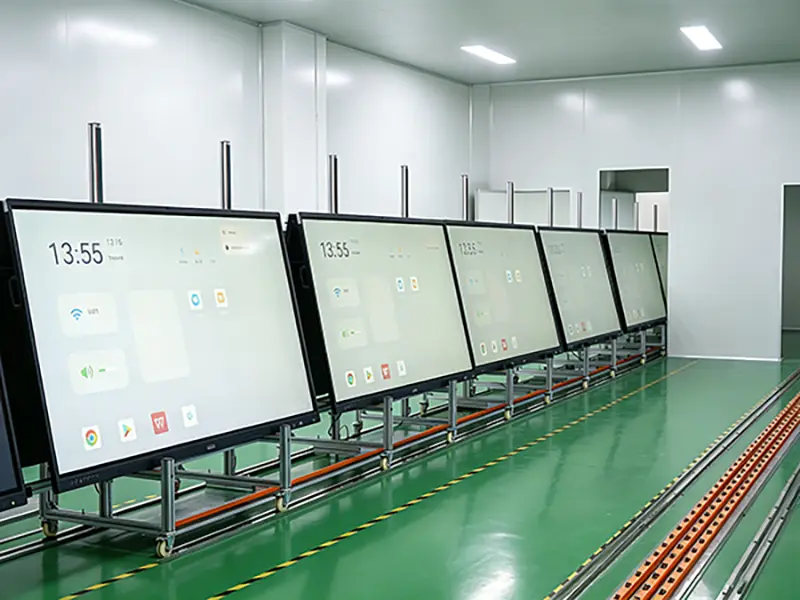

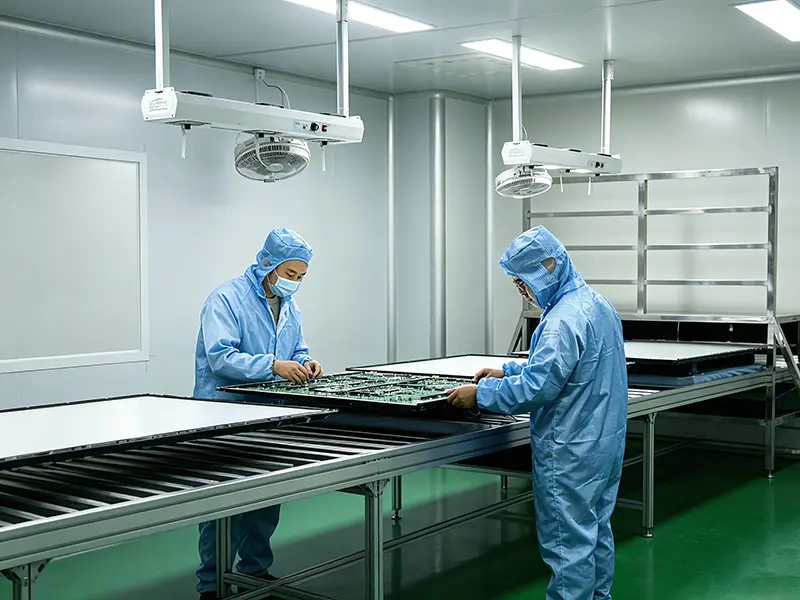

Every unit goes through multiple QC checkpoints: panel inspection, touch accuracy verification, glass hardness testing, speaker calibration, and 24-hour burn-in testing before packaging. Our ISO 9001 certified process ensures consistent quality across every batch.
